Moment of a Force: The Science of Turning
The Core Components of a Moment
To truly grasp the moment of a force, we need to break it down into its essential parts. Every turning action involves three key ingredients:
- The Pivot (or Fulcrum): This is the fixed point about which the object rotates. Imagine the central point of a seesaw where it balances—that's the pivot.
- The Force: This is the push or pull applied to the object. The harder you push, the greater the turning effect.
- The Perpendicular Distance: This is the shortest distance from the pivot to the line along which the force acts. It is not necessarily the length of the object. This distance is crucial because it determines the "leverage" you have.

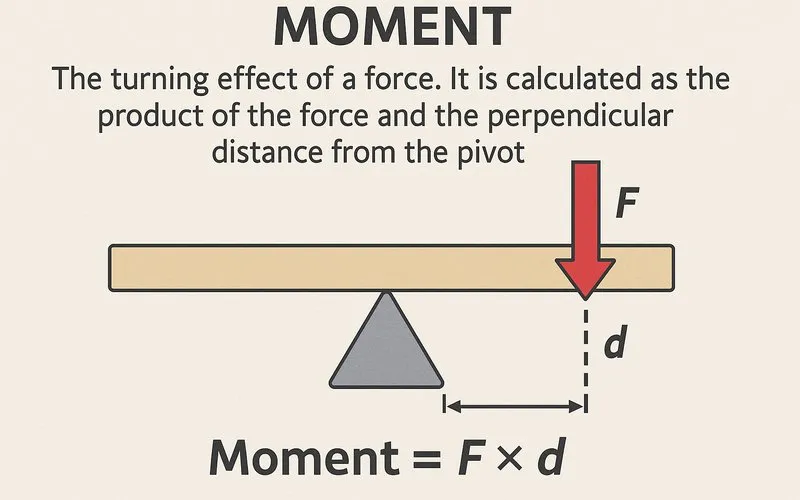

The mathematical relationship is simple yet powerful:
$M = F \times d$
Where:
$M$ is the moment in newton-metres (Nm),
$F$ is the force in newtons (N),
$d$ is the perpendicular distance in metres (m).
For example, if you apply a force of 10 N at a perpendicular distance of 0.5 m from a pivot, the moment is $10 \times 0.5 = 5$ Nm. This means the turning effect is equivalent to 5 Nm.
Clockwise vs. Anticlockwise Moments
Since a moment causes rotation, we also need to specify its direction. Moments are classified as either clockwise or anticlockwise. This is important because when multiple forces act on an object, their turning effects can cancel each other out.
Imagine pushing a door to open it. If you push on the side with the hinges (the pivot), the door won't move no matter how hard you push because the distance (d) is zero. If you push on the side away from the hinges, you create a moment that turns the door. Pushing one way creates a clockwise moment; pushing the other way creates an anticlockwise moment.
A key principle in physics is the Principle of Moments. It states that for an object to be in rotational equilibrium (not turning), the sum of the clockwise moments about a pivot must equal the sum of the anticlockwise moments about that same pivot.
Sum of Clockwise Moments = Sum of Anticlockwise Moments
$\sum M_{clockwise} = \sum M_{anticlockwise}$
Calculating Moments in Different Scenarios
The challenge in calculating moments often lies in correctly identifying the perpendicular distance. Let's look at a few common situations summarized in the table below.
| Scenario | Description | How to Find Perpendicular Distance |
|---|---|---|
| Force at a Right Angle | The force is applied at a 90-degree angle to the object. | The distance is simply the length from the pivot to the point of force application. This is the simplest case. |
| Force at an Angle | The force is applied at an angle other than 90 degrees. | You must use the component of the force that is perpendicular to the object, or find the shortest distance from the pivot to the line of action of the force. The effective moment is $M = F \times d \times \sin(\theta)$, where $\theta$ is the angle between the force and the object. |
| Multiple Forces | Several forces act on the same object, creating multiple moments. | Calculate the moment for each force individually, remembering to assign the correct sign (clockwise or anticlockwise). Then sum them up to find the net moment. |
A Practical Application: The Seesaw in Action
The seesaw, or teeter-totter, is a perfect real-world example to illustrate the principle of moments. The pivot is the central support. Two people sit on either end, applying their weights (which are forces due to gravity) downwards.
For the seesaw to be balanced and horizontal (in rotational equilibrium), the principle of moments must hold:
Weight of Person A × Distance from Pivot = Weight of Person B × Distance from Pivot
If a 30 kg child sits 2 m from the pivot, and a 20 kg child wants to balance it, where should the second child sit? (Assume $g \approx 10$ m/s², so weights are 300 N and 200 N).
Let the unknown distance be $d$.
Anticlockwise Moment = Clockwise Moment
$300 \times 2 = 200 \times d$
$600 = 200d$
$d = 3$ m
The lighter child must sit 3 m from the pivot to balance the heavier child. This shows how increasing the distance can compensate for a smaller force.
Common Mistakes and Important Questions
Q: Is moment the same as force?
No. Force is a push or pull that can cause linear motion (change in position). Moment is the turning effect of a force, which causes rotational motion (change in angle). A force can exist without creating a moment if it acts directly through the pivot point.
Q: What is the most common mistake when calculating moment?
The most frequent error is using the full length of the object instead of the perpendicular distance from the pivot to the line of action of the force. If the force is applied at an angle, the perpendicular distance is shorter than the object's length. Always ask: "What is the shortest distance from the pivot to the line along which the force is pushing?"
Q: What is the unit for moment?
The standard SI unit is the newton-metre (Nm). Since it is force multiplied by distance, the units are N × m. It is important not to confuse this with the joule (J), which is also a N·m but is used for energy and work. Moment is a measure of turning effect, not energy.
The moment of a force is a powerful and intuitive concept that explains the physics behind rotation. By understanding its definition—the product of force and perpendicular distance from the pivot—and the associated principle of moments, we can analyze and predict the behavior of countless systems, from simple playground equipment to complex machinery. Recognizing the difference between force and moment, and correctly identifying the perpendicular distance, are the keys to mastering this essential topic in physics.
Footnote
1 SI: Stands for "Systeme International," the modern form of the metric system used as the international standard for scientific measurements.
2 Vector Quantity: A physical quantity that has both magnitude and direction, such as force or velocity. The moment of a force is a vector because its direction (clockwise or anticlockwise) is significant.
3 Rotational Equilibrium: A state where the net moment acting on an object is zero, resulting in no angular acceleration. The object is either not rotating or rotating at a constant speed.
