Pivot: The Fixed Point of Rotation
The Fundamental Principles of a Pivot

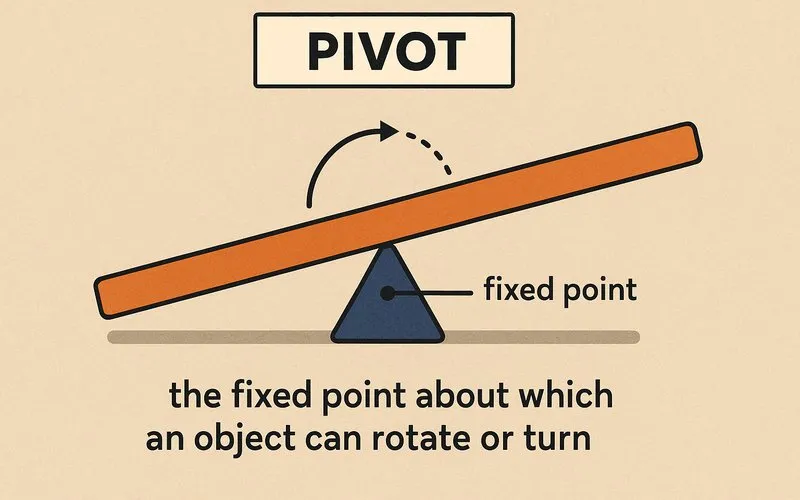

At its heart, a pivot is a point that does not move while the rest of the object rotates around it. Imagine a door. The edge where the hinges are attached is the pivot. The door swings open and closed, but the hinge line itself remains fixed in place. This is the essence of rotational motion.
The effectiveness of a force in causing rotation depends on two things: the magnitude of the force and the distance from the pivot. This turning effect is called torque[3]. The mathematical formula for torque ($\tau$) is:
$\tau = F \times d$
Where:
- $\tau$ (tau) is the torque, measured in Newton-meters (N·m).
- $F$ is the applied force, measured in Newtons (N).
- $d$ is the perpendicular distance from the pivot to the line of force, measured in meters (m). This distance is often called the lever arm or moment arm.
This means that the farther you apply a force from the pivot, the greater the turning effect. It's easier to loosen a tight bolt using a long wrench than a short one because the longer wrench provides a larger lever arm ($d$), resulting in more torque for the same amount of force.
Levers: The Classic Example of a Pivot
Levers are one of the simplest machines, and they perfectly illustrate the power of a pivot. A lever is a rigid bar that rotates around a fixed pivot point (the fulcrum). There are three main classes of levers, defined by the relative positions of the pivot (fulcrum), the effort (input force), and the load (output force or resistance).
| Class | Pivot Position | Real-World Example | Mechanical Advantage |
|---|---|---|---|
| First Class | Between the effort and the load | Seesaw, scissors, crowbar | Can be greater than, less than, or equal to 1 |
| Second Class | Load is between the pivot and the effort | Wheelbarrow, nutcracker, bottle opener | Always greater than 1 (effort is less than load) |
| Third Class | Effort is between the pivot and the load | Tweezers, fishing rod, human forearm | Always less than 1 (effort is greater than load) |
In a first-class lever like a seesaw, the pivot is in the middle. If two people of equal weight sit at equal distances from the pivot, the seesaw is balanced. This state is called rotational equilibrium, where the net torque is zero. If one person is heavier, they must sit closer to the pivot to balance it, demonstrating how adjusting the lever arm can compensate for a difference in force.
Pivots in Action: From Playgrounds to Planets
The concept of a pivot is not limited to man-made objects; it is a fundamental part of the natural and mechanical world.
Everyday Objects:
- Wheels and Axles: The axle acts as the pivot for the wheel. The entire wheel rotates around the center of the axle.
- Clock Hands: The center of the clock face is the pivot point for the hour, minute, and second hands.
- Wrenches: The head of the bolt is the pivot. Turning the wrench applies a torque to rotate the bolt around its own center.
In Nature and Science:
- Human Body: Your joints act as pivots. Your elbow is the pivot for your forearm, allowing it to rotate and lift objects. Your shoulder is a pivot for your entire arm.
- Celestial Bodies: The Earth rotates around an imaginary pivot line called its axis, which runs from the North Pole to the South Pole. This rotation is what causes day and night.
- Chemistry: In molecules, atoms can rotate around the bonds that connect them. The chemical bond acts as a pivot for this limited rotational motion.
Common Mistakes and Important Questions
Is the pivot always at the center of an object?
No, this is a common misconception. The pivot can be located anywhere on or even outside the object. For a swinging door, the pivot is along one edge. For a catapult, the pivot is the axle around which the throwing arm rotates, which is not at the center of the arm. The key is that the pivot is fixed relative to the object's rotation.
What is the difference between a pivot and a center of mass?
The center of mass is the point where an object's mass is considered to be concentrated. The pivot is the point around which it rotates. They are often not the same point. When you spin a keychain around your finger, your finger is the pivot, but the keychain's center of mass is somewhere within the ring of keys. An object will rotate smoothly around its center of mass if it is free to do so, like a thrown football spiraling.
Can an object have more than one pivot?
For a single, simple rotation, an object has one axis of rotation and therefore one effective pivot. However, complex objects can have multiple parts that rotate around different pivots simultaneously. For example, a human can rotate their upper arm around the shoulder pivot while also rotating their forearm around the elbow pivot.
Footnote
[1] Fulcrum: The support point on which a lever rests and pivots.
[2] Axis of Rotation: An imaginary straight line around which an object rotates. The pivot points lie along this axis.
[3] Torque: A measure of the force that can cause an object to rotate about an axis. It is the rotational equivalent of linear force.
