Electric Current: The River of Electricity
What Exactly is Electric Current?

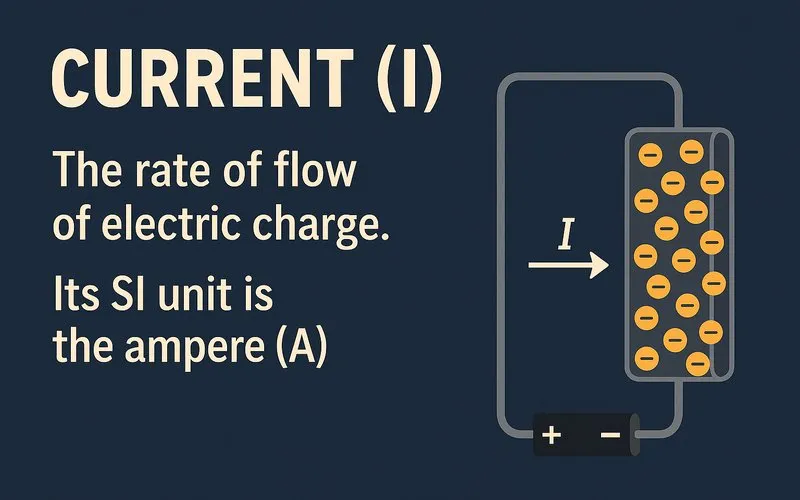

Imagine a wide, calm river. Now, imagine a fast-moving stream. The amount of water moving past a specific point every second is different in each case. Electric current is very similar, but instead of water, it's the flow of tiny, invisible particles called electric charges. The official definition is: the rate of flow of electric charge.
The charge is usually carried by electrons, which are part of atoms. In a wire, these electrons drift through the metal when a "push" (called voltage) is applied. The more charge that flows per second, the larger the current.
The mathematical formula for current ($I$) is:
Where:
$I$ is the current in amperes (A).
$Q$ is the charge in coulombs (C).
$t$ is the time in seconds (s).
This means that a current of $1$ ampere ($1$ A) means that $1$ coulomb ($1$ C) of charge is flowing past a point every second.
The Analogy of Water Flow
Using a water analogy makes understanding current, voltage, and resistance much easier.
| Electrical Concept | Water Analogy | Unit |
|---|---|---|
| Current ($I$) | Flow Rate of Water | Ampere (A) |
| Voltage ($V$) | Water Pressure | Volt (V) |
| Resistance ($R$) | Narrowness of the Pipe | Ohm ($\Omega$) |
So, a high water pressure (voltage) can push a large flow of water (current) through a wide pipe (low resistance). Conversely, the same pressure will result in a smaller flow if the pipe is narrow (high resistance).
Direct Current (DC) vs. Alternating Current (AC)
Not all current flows in the same way. There are two primary types, each with its own uses and characteristics.
Direct Current (DC): The electric charge flows in one constant direction. It's like water flowing steadily down a slide. The voltage remains constant, pushing the electrons in a single direction. Sources of DC include batteries (like in your phone or a flashlight), solar cells, and fuel cells.
Alternating Current (AC): The electric charge changes direction periodically. It's like a saw moving back and forth to cut a piece of wood. The voltage reverses polarity, causing the current to alternate direction. In most power outlets, this happens 50 or 60 times per second (measured in Hertz, Hz). AC is used for the power distribution in homes and businesses because it is much more efficient to transmit over long distances.
Ohm's Law: The Fundamental Relationship
The relationship between current, voltage, and resistance is one of the most important principles in electricity. It is known as Ohm's Law, named after the physicist Georg Ohm.
Where:
$V$ is the voltage in volts (V).
$I$ is the current in amperes (A).
$R$ is the resistance in ohms ($\Omega$).
This formula can be rearranged to find any of the three quantities:
- To find Current: $I = \frac{V}{R}$
- To find Resistance: $R = \frac{V}{I}$
This tells us that the current in a circuit is directly proportional to the voltage and inversely proportional to the resistance. Double the voltage, and the current doubles. Double the resistance, and the current is halved.
Current in Action: From Flashlights to Homes
Let's see how current works in real-world scenarios.
Example 1: A Simple Flashlight
A standard flashlight has a $3$-volt battery and a light bulb with a resistance of $15$ ohms. Using Ohm's Law, we can calculate the current flowing through the circuit:
$I = \frac{V}{R} = \frac{3\text{ V}}{15\ \Omega} = 0.2\text{ A}$
This means $0.2$ amperes, or $200$ milliamps (mA), of current flows from the battery, through the switch and bulb, and back to the battery, lighting up the bulb.
Example 2: Household Appliance
A hairdryer plugged into a standard $120$-volt (in the US) outlet might draw a current of $10$ A. We can find its effective resistance:
$R = \frac{V}{I} = \frac{120\text{ V}}{10\text{ A}} = 12\ \Omega$
This relatively low resistance allows a large current to flow, which produces the heat and fan motion needed to dry hair. This is why high-power appliances like hairdryers and toasters draw more current than a simple lamp.
Measuring Electric Current
Electric current is measured using an instrument called an ammeter. To measure the current flowing through a component, the ammeter must be connected in series with that component. This means the circuit must be broken, and the ammeter is placed directly in the path of the current so that all the current flows through it. Modern multimeters, which can measure voltage, resistance, and current, have an ammeter function.
Common Mistakes and Important Questions
Q: Is current "used up" in a circuit?
No, this is a very common misconception. Current is the flow of charge. In a simple circuit, the same amount of current (number of electrons per second) flows through every part. The electrons themselves are not consumed; they carry energy from the battery to the component (like a light bulb). The component uses the electrical energy carried by the current, converting it to other forms like light and heat. The electrons then continue to flow back to the source, albeit with less energy.
Q: What is the difference between current and voltage?
Using the water analogy, voltage is the water pressure that pushes the water. Current is the actual flow or movement of the water itself. You can have high pressure (high voltage) with no flow (zero current) if the tap is closed (infinite resistance). Similarly, you can have a flow of water (current) driven by pressure (voltage).
Q: Why is high current dangerous?
The danger of electricity primarily comes from the current flowing through the body. Even a relatively low voltage can be dangerous if it can drive a high enough current. When current passes through the body, it can interfere with the nervous system (causing muscle contractions, including the heart) and generate heat, causing severe burns. As little as $0.1$ A can be fatal.
Conclusion
Electric current is the lifeblood of our electronic world. From the tiny currents that power the chips in our smartphones to the massive currents that run industrial machinery, understanding its nature is fundamental. By grasping the simple concept of charge flow, the crucial relationship defined by Ohm's Law, and the distinction between DC and AC, we can demystify how electrical devices work and appreciate the engineering that brings power to our fingertips. Remember, current is the rate of flow, and it is this controlled flow of invisible charges that illuminates our lives.
Footnote
1 SI: Stands for "Systeme International," the modern form of the metric system used as the standard for scientific measurements worldwide.
2 Ampere (A): The SI base unit of electric current, defined as the flow of one coulomb of charge per second.
3 Coulomb (C): The SI unit of electric charge. It is equivalent to the charge of approximately $6.24 \times 10^{18}$ electrons.
4 Hertz (Hz): The SI unit of frequency, defined as one cycle per second. Used to measure how often AC current changes direction.
