Path Difference: The Unseen Force Shaping Waves
What is Path Difference?

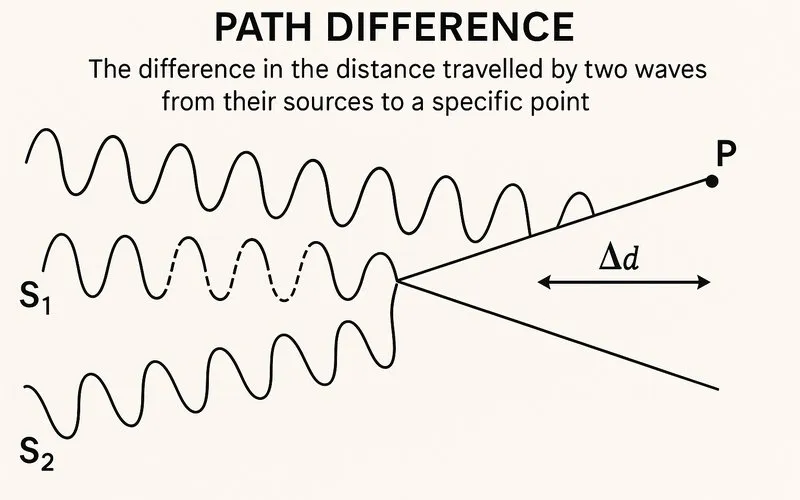

Imagine two people, Alex and Ben, standing at different starting points and walking towards the same tree. If Alex has to walk 30 meters and Ben only 20 meters, the difference in their walking distances is 10 meters. This is exactly the idea behind path difference for waves. It is simply the difference in the distance two waves have traveled from their sources to the point where they meet.
We represent path difference with the symbol $\Delta x$ (delta x). If one wave travels a distance $d_1$ and another wave travels a distance $d_2$ to the same point, the path difference is:
$\Delta x = |d_1 - d_2|$
The absolute value $|...|$ is used because we are only interested in the magnitude of the difference, not which path is longer. This seemingly small measurement has enormous consequences because it determines how the waves will interact, a process known as interference.
The Magic of Wave Interference
Waves are not like solid objects. When two waves meet, they don't crash and stop; they pass through each other. At the moment they cross, their effects combine. This combining of waves is called interference. There are two main types of interference, and path difference tells us which one will happen.
Think of a wave as a repeating pattern of crests (the high points) and troughs (the low points).
- Constructive Interference: This occurs when a crest meets a crest, and a trough meets a trough. The two waves add up, creating a wave with a larger amplitude (it becomes taller for water waves, louder for sound, or brighter for light). It's like two people pushing a swing at the same time and in the same direction—the swing goes much higher.
- Destructive Interference: This occurs when a crest meets a trough. The two waves cancel each other out. If they have equal amplitudes, they can completely cancel each other, resulting in no wave at all (flat water, silence, or darkness). It's like one person pushing a swing while another pulls it back with equal force—the swing stops moving.
Connecting Path Difference to Interference
The type of interference is directly controlled by the path difference. The key is to compare the path difference to the wave's wavelength[1]. The wavelength, represented by the Greek letter lambda $\lambda$, is the distance between two consecutive crests (or troughs) of a wave.
Constructive Interference occurs when the path difference is a whole number of wavelengths:
$\Delta x = n\lambda$ where $n = 0, 1, 2, 3, ...$
Destructive Interference occurs when the path difference is a half-integer number of wavelengths:
$\Delta x = (n + \frac{1}{2})\lambda$ where $n = 0, 1, 2, 3, ...$
Why is this? If the path difference is exactly one wavelength $(\Delta x = \lambda)$, it means one wave has traveled exactly one full cycle further than the other. So, when they meet, their crests and troughs are perfectly aligned. If the path difference is half a wavelength $(\Delta x = \lambda/2)$, one wave is exactly half a cycle behind the other. This means the crest of the first wave will arrive at the same time as the trough of the second wave, leading to cancellation.
A Symphony of Applications
The principles of path difference and interference are not just abstract ideas; they are at work all around us, creating the world we see and hear.
The Ripples in a Pond
If you drop two pebbles close together in a pond, you will see two sets of circular waves spreading out and overlapping. In the regions where the path difference from the two sources to a point on the water is $0, \lambda, 2\lambda,$ etc., the waves add together, creating larger ripples (constructive interference). In the regions where the path difference is $\lambda/2, 3\lambda/2,$ etc., the water is almost still (destructive interference). This creates a beautiful, stable pattern of alternating high and low activity.
The Colors of a Soap Bubble
Why does a soap bubble shimmer with different colors? Sunlight contains all colors of the rainbow. When light hits the thin film of the bubble, some of it reflects off the outer surface, and some reflects off the inner surface. The light waves from these two reflections travel different paths before they meet your eye. The path difference depends on the thickness of the film and the angle you are looking from.
For a given thickness and angle, the path difference might be just right to cause destructive interference for one color (say, red) and constructive interference for another (say, blue). As the soap film drifts and changes thickness, the path difference changes, and you see a shifting pattern of brilliant colors.
Noise-Canceling Headphones
This is a brilliant technological application of destructive interference. These headphones have a tiny microphone that picks up low-frequency ambient noise, like the hum of an airplane engine. A small computer inside the headphones quickly generates a sound wave that is the exact opposite (a perfect "anti-noise" wave) of the incoming noise. This anti-noise wave is played through the headphone speakers. The path difference is engineered to be zero, so the original noise and the anti-noise meet at your ear with a path difference that causes perfect destructive interference. The result? You hear silence, or at least a significant reduction in the annoying background noise.
Tuning a Radio
Radio stations broadcast at specific frequencies. Your radio antenna receives signals from all stations at once. To tune into your favorite station, the radio uses a circuit that is sensitive to a narrow range of frequencies. It essentially creates a condition for constructive interference for the desired station's frequency while causing destructive interference for all others, allowing you to hear one station clearly.
Putting It All Together: The Double-Slit Experiment
One of the most famous demonstrations of path difference is Young's Double-Slit Experiment. It brilliantly shows the wave nature of light.
In this experiment, a beam of light of a single color (and thus a single wavelength, $\lambda$) is shone on a barrier that has two very close, parallel slits. The slits act as two new, identical sources of light waves. These waves spread out and overlap on a screen behind the barrier.
At some points on the screen, the path difference from the two slits will be $n\lambda$. At these points, constructive interference creates a bright spot of light. At other points, the path difference will be $(n + \frac{1}{2})\lambda$. Here, destructive interference creates a dark spot. The result is a series of alternating bright and dark bands, called an interference pattern, projected on the screen. This pattern is direct, visual proof that light behaves as a wave.
| Path Difference ($\Delta x$) | Type of Interference | Result for Light | Result for Sound |
|---|---|---|---|
| $0, \lambda, 2\lambda, 3\lambda, ...$ | Constructive | Bright Fringe | Loud Sound |
| $\frac{1}{2}\lambda, \frac{3}{2}\lambda, \frac{5}{2}\lambda, ...$ | Destructive | Dark Fringe | Soft Sound / Silence |
Common Mistakes and Important Questions
Q: Do the two waves need to come from different sources?
Not always! A very common scenario involves a single wave source. For example, in the soap bubble, the two waves that interfere both come from the same original light wave. The key is that the single wave is split into two parts that take different paths before recombining. The path difference between these two parts is what causes the interference.
Q: Is path difference the only thing that matters for interference?
For sustained, observable interference patterns, the two sources must be coherent[2], meaning they have a constant phase difference. In practice, this usually means they must be identical in frequency and phase. Two random light bulbs are not coherent, so you won't see an interference pattern from them, even if you calculate a path difference. The waves from the two slits in Young's experiment are coherent because they originate from the same original light source.
Q: What happens if the path difference is not a perfect multiple of the wavelength?
The conditions for perfect constructive and destructive interference are very specific. If the path difference is close to, but not exactly, $n\lambda$ or $(n + \frac{1}{2})\lambda$, you get partial interference. The waves will neither add fully nor cancel completely. The result will be a wave with an amplitude somewhere in between the maximum and zero.
Path difference is a simple but profoundly powerful concept. It is the ruler that measures the journey of waves and dictates their final dance of combination. From the intricate patterns of light in a CD[3] to the precise tuning of a musical instrument, the principles of interference governed by path difference are fundamental to our understanding of physics and technology. By grasping how the difference in distance traveled can lead to both brilliant reinforcement and perfect cancellation, we unlock the ability to explain and engineer a vast array of phenomena in our world.
Footnote
[1] Wavelength ($\lambda$): The distance between two successive identical points on a wave, such as from crest to crest or trough to trough. It is usually measured in meters (m).
[2] Coherent Sources: Two wave sources that maintain a constant phase relationship with each other. This means the crests and troughs from one source always bear a fixed timing relationship to the crests and troughs from the other source.
[3] CD (Compact Disc): The rainbow colors on the surface of a CD are created by interference of light reflected from the closely spaced, microscopic pits on the disc's surface, which act like a diffraction grating.
