The Principle of Superposition of Waves
What Happens When Waves Meet?
Imagine you are at a calm lake, and you drop two pebbles into the water some distance apart. Each pebble creates a set of circular ripples that spread outward. Soon, the ripples from the two pebbles will meet. What do you see? You don't see the ripples crashing into each other and stopping. Instead, they seem to pass right through one another! At the point where they cross, the water's surface does something special: it moves in a way that is a combination of the up-and-down motion from both sets of ripples. This is the Principle of Superposition in action.

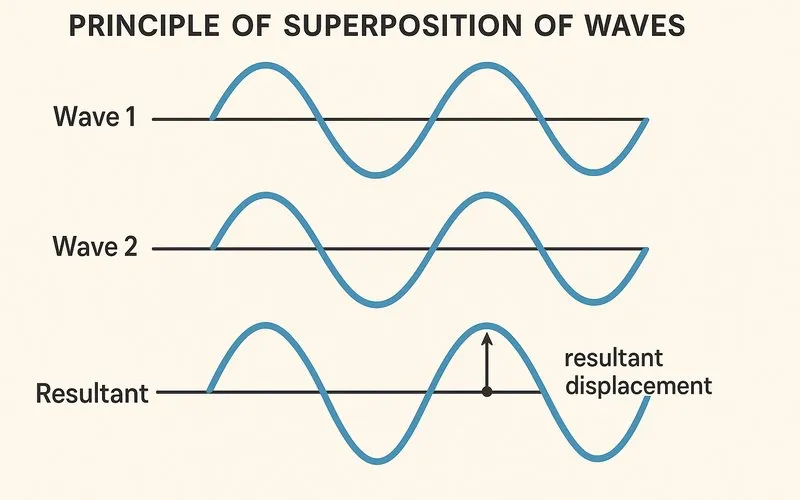

The principle can be stated mathematically. If Wave 1 causes a displacement $y_1$ and Wave 2 causes a displacement $y_2$ at the same point and time, the total displacement $y_{total}$ is:
$y_{total} = y_1 + y_2$
This is a vector addition. This means if one wave is trying to push a particle up (positive displacement) and another is trying to push it down (negative displacement) by the same amount, the result is zero displacement—the particle doesn't move at all!
The Two Faces of Interference: Constructive and Destructive
The superposition of waves leads to a phenomenon called interference. Interference is just a fancy word for how waves add together. There are two main types, and they depend on the alignment, or phase, of the waves.
| Type of Interference | Description | Visual Cue | Example |
|---|---|---|---|
| Constructive Interference | Occurs when the crest of one wave meets the crest of another wave (or trough meets trough). The waves are "in phase." The amplitudes add up, creating a wave with a larger amplitude. | A bigger splash, a louder sound, a brighter light. | Two speakers playing the same note can create spots in a room where the sound is much louder. |
| Destructive Interference | Occurs when the crest of one wave meets the trough of another wave. The waves are "out of phase." The amplitudes subtract, creating a wave with a smaller or even zero amplitude. | A calm spot on the water, a quiet spot for sound, a dark spot for light. | Noise-canceling headphones produce sound waves that destructively interfere with ambient noise. |
Seeing Superposition in Action: Real-World Examples
The Principle of Superposition isn't just a theory in a textbook; it's happening all around you. Here are some concrete examples that bring this concept to life.
1. Ripples on a Pond: As described earlier, this is the most intuitive example. The beautiful and complex patterns formed when ripples overlap are a direct result of superposition, with points of constructive interference (higher water) and destructive interference (calmer water).
2. Music and Sound: When you listen to a band, you are hearing a single, complex sound wave that is the superposition of the sound waves from each instrument and singer. A chord on a piano is a perfect example of constructive interference creating a pleasant, rich sound. Conversely, destructive interference is used in noise-canceling headphones. A microphone picks up the low rumble of an airplane engine, and the headphones' electronics instantly generate a sound wave that is the exact opposite (a crest for every trough). These two waves superimpose and cancel each other out, giving you silence.
3. Light and Colors: Soap bubbles and oil slicks on water show beautiful swirling colors. This is due to the interference of light waves. Light reflects off both the top and bottom surfaces of the thin film of soap or oil. These two reflected waves travel different distances and then superimpose. For some colors (wavelengths), the interference is constructive, making that color bright. For other colors, it is destructive, making them dim or absent. The result is the rainbow of colors you see.
4. Standing Waves on a String: If you shake one end of a rope that is fixed at the other end, you can create a wave pattern that seems to stand still. This is a standing wave, and it is formed by the superposition of the wave you send down the rope and the wave that reflects back from the fixed end. There are points called nodes where the rope doesn't move at all (complete destructive interference) and points called antinodes where the rope moves the most (constructive interference). This is how all stringed instruments, like guitars and violins, create their specific musical notes.
Common Mistakes and Important Questions
No! This is a very common misunderstanding. The Principle of Superposition only tells us what happens at the specific point and time where the waves meet. After the waves pass through each other, they continue traveling forward, completely unchanged, as if they had never met. Their individual identities are preserved. The interference is a temporary effect at the point of overlap.
Not at all. The principle applies to any number of waves. The total displacement is simply the sum of the displacements from all the waves present. For $n$ waves, the formula becomes $y_{total} = y_1 + y_2 + y_3 + ... + y_n$. This is why a large orchestra can produce such a powerful and complex sound.
The Principle of Superposition holds true for all linear waves. This includes most common waves like water waves, sound waves, and light waves. However, some very large waves, like tsunami waves or intense laser light, can behave in a "non-linear" way, where the simple addition rule breaks down. For the vast majority of everyday situations, the principle applies perfectly.
Footnote
1. Amplitude[1]: The maximum displacement of a wave from its rest position. For a water wave, it's the height of a crest; for a sound wave, it relates to loudness.
2. Phase[2]: The position of a point in time on a waveform cycle. Two waves are "in phase" if their crests and troughs align perfectly. They are "out of phase" if the crest of one aligns with the trough of the other.
3. Wavelength[3]: The distance between two successive identical points on a wave, such as from crest to crest or trough to trough.
4. Linear Waves[4]: Waves for which the amplitude of the resulting wave is directly proportional to the amplitudes of the individual waves, allowing the Principle of Superposition to hold true.
