Lenz's Law: The Magnet's Stubborn Opponent
The Core Principles of Electromagnetic Induction
Before we dive into Lenz's Law, we need to understand its origin story. It all starts with Michael Faraday's groundbreaking discovery in the 1830s: a changing magnetic field can create, or induce, an electric current in a closed loop of wire. This phenomenon is called electromagnetic induction. The key word here is changing. A static, unmoving magnet won't do anything. You have to move the magnet towards or away from the coil, or change the strength of the magnetic field.
Faraday gave us the "what" and the "how much." He formulated Faraday's Law, which tells us the magnitude of the induced voltage. In simple terms, the faster the magnetic field changes, the greater the voltage and the stronger the induced current. The mathematical formula is:
Where:
$\mathcal{E}$ is the induced electromotive force (EMF, or voltage).
$N$ is the number of turns in the coil.
$\frac{\Delta \Phi_B}{\Delta t}$ is the rate of change of the magnetic flux.
But Faraday's Law left an important question unanswered: In which direction does this induced current flow? This is where the Russian physicist Heinrich Lenz made his crucial contribution. A few years after Faraday's discovery, Lenz formulated the law that now bears his name, providing the "which way" to Faraday's "how much." The negative sign ($-$) in Faraday's Law is actually a direct mathematical representation of Lenz's Law!
Lenz's Law: The "Why" Behind the Direction
Lenz's Law states: The direction of the induced current is such that it opposes the change in magnetic flux that produced it. Let's break down this seemingly complex sentence.

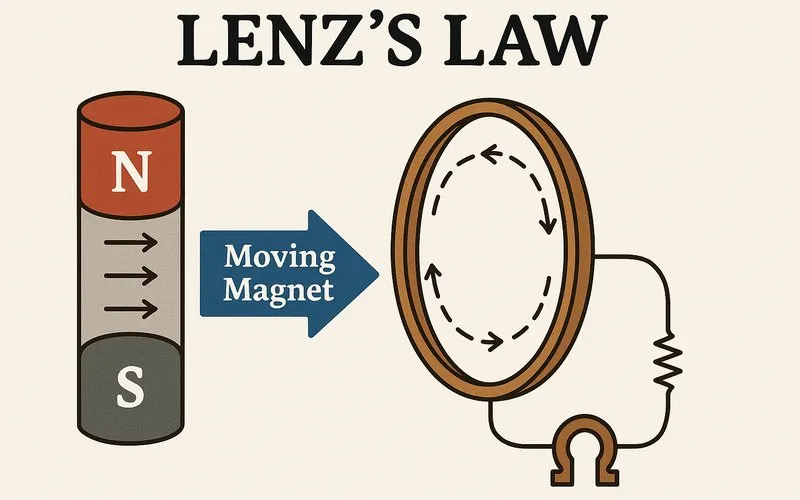

Imagine you have a coil of wire and you push the north pole of a bar magnet towards it. The magnetic field through the coil is increasing. Lenz's Law says the induced current will flow in such a direction that it creates its own magnetic field. What will be the polarity of that magnetic field? It will be a north pole facing the approaching magnet's north pole. Since like poles repel, this newly created magnetic field acts to oppose the motion of the magnet you are pushing. It's as if the coil is saying, "I was fine without your magnetic field, go away!"
Now, imagine you are pulling the magnet away. The magnetic field through the coil is decreasing. This time, the induced current will flow in the opposite direction, creating a magnetic field with a south pole facing the retreating north pole. Since opposite poles attract, this magnetic field acts to oppose the motion of the magnet you are pulling away. It's as if the coil is saying, "Don't go! Stay here!"
The following table summarizes these two fundamental scenarios:
| Action on the Magnet | Change in Magnetic Flux | Induced Magnetic Field Polarity | Effect on the Magnet's Motion |
|---|---|---|---|
| North pole moved towards the coil | Increases | North pole faces the magnet | Repels (opposes the approach) |
| North pole moved away from the coil | Decreases | South pole faces the magnet | Attracts (opposes the retreat) |
| South pole moved towards the coil | Increases | South pole faces the magnet | Repels (opposes the approach) |
| South pole moved away from the coil | Decreases | North pole faces the magnet | Attracts (opposes the retreat) |
Lenz's Law in Action: Real-World Applications
Lenz's Law isn't just a theoretical idea; it's working all around us in devices we use every day. Its role as nature's "opposer" is what makes many technologies efficient and functional.
1. The Electric Generator: This is perhaps the most important application. In a generator, mechanical energy (from falling water, steam, or wind) is used to rotate a coil inside a magnetic field. As the coil spins, the magnetic flux through it constantly changes, inducing a current. According to Lenz's Law, the induced current creates a magnetic field that opposes the rotation of the coil. This means you have to keep putting in mechanical energy to overcome this opposition. This is a direct manifestation of the conservation of energy[1]—you can't get electrical energy out without putting mechanical energy in. The generator doesn't create energy; it just converts it, and Lenz's Law ensures this balance.
2. Magnetic Braking: Have you ever wondered how some roller coasters and high-speed trains slow down smoothly without physical friction? They use eddy current brakes. A strong magnet is placed near a spinning metal wheel (or the rail). As the wheel spins, it moves through the magnet's field, inducing swirling currents called eddy currents within the metal. By Lenz's Law, these currents create a magnetic field that opposes the motion of the wheel, slowing it down effectively and without wear and tear.
3. The Induction Cooktop: Your kitchen might have a modern stove that doesn't get hot itself. Under the ceramic glass, there is a coil of wire with an alternating current[2] running through it. This creates a rapidly changing magnetic field. When you place a steel or iron pot on the cooktop, this changing field induces powerful eddy currents in the pot's base. Lenz's Law ensures these currents fight against the change, and this "fight" generates heat through electrical resistance, cooking your food. The cooktop surface stays cool because it's not a magnetic material itself.
4. The Electric Guitar Pickup: The sound of an electric guitar is created by Lenz's Law and Faraday's Law. Under the metal strings, there are permanent magnets with coils of wire wrapped around them. When a metal string vibrates, it changes the magnetic field through the coil. This changing field induces a small, fluctuating current in the coil—a current whose pattern matches the string's vibration. This signal is then amplified to produce sound.
Common Mistakes and Important Questions
Q: Does Lenz's Law create a force that always repels the magnet?
No, this is a common misunderstanding. The force always opposes the change, not the magnet itself. If you are pushing a magnet towards a coil, the force is repulsive. But if you are pulling the magnet away, the force becomes attractive, trying to pull it back. In both cases, the force resists the change in motion.
Q: How is Lenz's Law related to the conservation of energy?
Lenz's Law is the enforcer of energy conservation in electromagnetic induction. If the induced current flowed in a direction to help the change (e.g., attracting a magnet you are pushing in), it would create even more current, which would attract the magnet even faster, creating a perpetual motion machine[3] that gives you free energy. This is impossible. The opposing force means you must do work to move the magnet, and that work is what gets converted into electrical energy.
Q: What is the "Right-Hand Rule" for Lenz's Law?
The Right-Hand Rule is a handy trick to determine the direction of the induced magnetic field. First, identify the change in the external magnetic field (is it increasing or decreasing?). Then, point the thumb of your right hand in the direction opposite to this change. Your curled fingers will show the direction of the induced current around the loop. For example, if a north pole is approaching (increasing field), point your thumb away from the coil (opposing the increase). Your fingers will curl, showing the current direction that creates a north pole to repel the magnet.
Conclusion
Lenz's Law is a elegant and powerful statement about how nature behaves. It provides the crucial link between a changing magnetic field and the direction of the electric current it induces, ensuring that the fundamental principle of energy conservation is never violated. From the massive generators powering our cities to the simple act of cooking dinner on an induction stove, Lenz's Law is a silent but stubborn force, constantly pushing back against change and making our modern, electrified world possible. It is a perfect example of a simple physical law with profound and widespread consequences.
Footnote
[1] Conservation of Energy: A fundamental law of physics which states that energy cannot be created or destroyed, only transformed from one form to another.
[2] Alternating Current (AC): An electric current that periodically reverses direction, unlike Direct Current (DC) which flows only in one direction. The changing nature of AC is perfect for creating changing magnetic fields.
[3] Perpetual Motion Machine: A hypothetical machine that can do work indefinitely without an energy source. Such a machine is impossible because it would violate the laws of thermodynamics, particularly the conservation of energy.
