Magnetic Flux: The Invisible Flow of Magnetism
What Exactly is Magnetic Flux?
To understand magnetic flux, it helps to visualize a magnetic field. We often represent this field with lines, where closer lines mean a stronger magnet. Magnetic flux is a measure of how many of these lines pass through a specific area. It's not just about the strength of the magnet (B), but also about how big the area (A) is and how you orient that area relative to the magnetic field lines.
Imagine you are holding a hula hoop in a river. The amount of water flowing through the hoop depends on:
- The speed of the current (like magnetic field strength, B).
- The size of the hoop (like the area, A).
- How you hold the hoop. If you hold it facing the current directly, you get maximum water flow. If you turn it sideways, no water flows through. This is the role of the angle (θ).
Magnetic flux works the same way. It's the total "flow" of the magnetic field through a loop or surface.

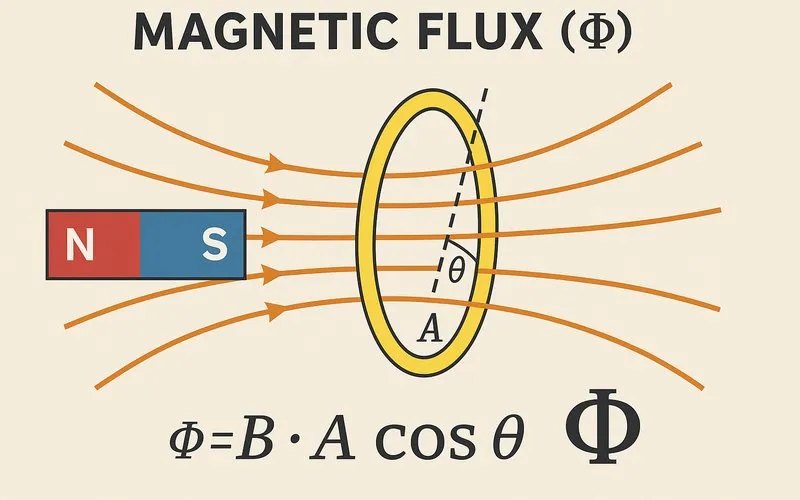

The magnetic flux (Φ) is calculated using the equation:
$ \Phi = B \times A \times \cos(\theta) $
Where:
• Φ (Phi) is the magnetic flux in Webers (Wb).
• B is the strength of the magnetic field in Teslas (T).
• A is the area of the surface in square meters (m²).
• θ (theta) is the angle between the magnetic field lines and a line perpendicular (normal) to the surface.
Breaking Down the Formula's Components
Let's look at each part of the magnetic flux formula in more detail to see how they work together.
Magnetic Field Strength (B)
The magnetic field strength, or magnetic flux density, tells us how strong and concentrated the magnetic field is. Its SI unit is the Tesla (T). A stronger magnet has a higher B value, which means more field lines are packed into a given space. A typical refrigerator magnet has a field strength of about 0.001 T, while a strong medical MRI machine can be over 3 T.
Area (A)
This is simply the size of the surface through which the magnetic field is passing. A larger area, like a big loop of wire, can "catch" more magnetic field lines than a small one, just like a big fishing net catches more fish. The area must be measured in square meters (m²) for the formula to work with Teslas and Webers.
The Angle Factor (θ)
The angle θ is the most crucial part for understanding how orientation affects flux. It is the angle between the magnetic field lines and the "normal" line (a line sticking straight out of the surface at a 90-degree angle).
| Angle (θ) | cos(θ) | Flux (Φ) | Description |
|---|---|---|---|
| 0° | 1 | Maximum | Field lines are perpendicular to the surface. Maximum number of lines pass through. |
| 30° | 0.87 | High | Most field lines still pass through the surface. |
| 60° | 0.5 | Medium | Half the maximum flux. |
| 90° | 0 | Zero | Field lines run parallel to the surface. No lines pass through. |
A Practical Example: Calculating Flux
Let's put the formula to work with a real-world scenario. Imagine you have a rectangular loop of wire that is 0.2 m by 0.3 m. You place it in a uniform magnetic field of 0.5 T.
Step 1: Calculate the Area (A)
$ A = \text{length} \times \text{width} = 0.2 \, \text{m} \times 0.3 \, \text{m} = 0.06 \, \text{m}^2 $
Step 2: Determine the Angle (θ) and its Cosine
Let's calculate the flux for two different orientations:
Case 1: The field is perpendicular to the loop (θ = 0°). $ \cos(0^\circ) = 1 $.
Case 2: The field is at a 60° angle to the loop's perpendicular. $ \cos(60^\circ) = 0.5 $.
Step 3: Apply the Flux Formula
Case 1: $ \Phi = B \times A \times \cos(\theta) = 0.5 \, \text{T} \times 0.06 \, \text{m}^2 \times 1 = 0.03 \, \text{Wb} $
Case 2: $ \Phi = 0.5 \, \text{T} \times 0.06 \, \text{m}^2 \times 0.5 = 0.015 \, \text{Wb} $
As you can see, just by changing the angle, the magnetic flux was cut in half! This demonstrates why orientation is so important.
Magnetic Flux in Action: Generating Electricity
The most important application of magnetic flux is in generating electricity. This is based on a principle called Faraday's Law of Induction[1]. This law states that a changing magnetic flux through a loop of wire will induce a voltage, and therefore an electric current, in that wire.
The key word is changing. To create electricity, the flux must not be constant. You can change the flux in three ways:
- Change the magnetic field strength (B): Turn an electromagnet on or off, or move a magnet closer to or farther from the coil.
- Change the area (A): Stretch or squeeze the loop of wire (though this is less common).
- Change the angle (θ): Rotate the loop in the magnetic field. This is how almost all electric generators and power plants work.
Think about a simple bicycle dynamo. When the wheel turns, it rotates a magnet inside a coil of wire. As the magnet spins, the angle between its field and the coil constantly changes, which means the magnetic flux through the coil is constantly changing. This changing flux creates the electric current that powers your bike light.
Common Mistakes and Important Questions
Q: Is magnetic flux the same as magnetic field strength?
Q: Why is the angle measured from the perpendicular (normal) line and not the surface itself?
Q: Can magnetic flux be negative?
Magnetic flux is a powerful and elegant concept that quantifies the total influence of a magnetic field over an area. By understanding its formula, $ \Phi = B A \cos\theta $, we see that it's not just about magnet strength, but a delicate interplay of strength, area, and orientation. This simple idea is the unsung hero behind our modern world, forming the foundational principle upon which electric generators and transformers operate. From powering our homes to charging our phones, the invisible flow of magnetic flux is a force that quietly drives our technological society.
Footnote
[1] Faraday's Law of Induction: A fundamental law of electromagnetism predicting how a magnetic field will interact with an electric circuit to produce an electromotive force (EMF)[2]—a phenomenon known as electromagnetic induction.
[2] EMF (Electromotive Force): Not actually a force, but the voltage generated by a battery or by the magnetic force according to Faraday's Law. It is the energy provided per charge that passes through the power source.
[3] SI (International System of Units): The modern form of the metric system and the most widely used system of measurement in the world.
